AC and DC support
Designed to support compatible AC and DC charging connections through one unit.
CCS2 TO NACS • AC/DC 2-IN-1

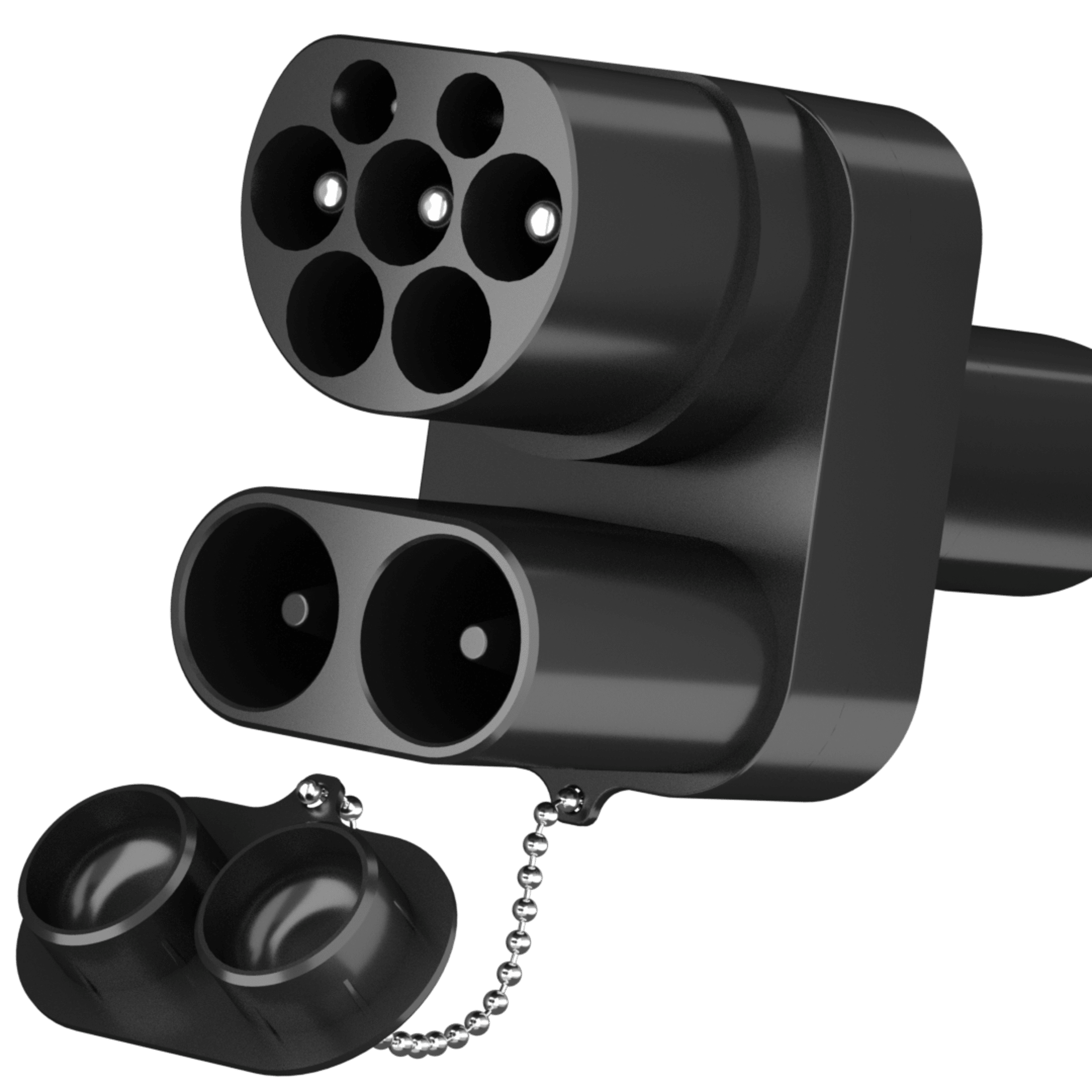

CCS2 to NACS AC/DC 2-in-1 EV Charging Adapter
Connect a compatible NACS/Tesla-style vehicle inlet to supported CCS2 charging equipment through one compact adapter designed for both compatible AC and DC charging.
Up to 250 kW DC300–1000 V DCIP54CE & FCC
2-in-1Compatible AC and DC charging support
250 kWMaximum listed DC power rating
10,000+Mechanical connection cycles
PRODUCT OVERVIEW
One adapter for supported CCS2 charging infrastructure
The adapter connects a CCS2 charging plug to a compatible vehicle fitted with a NACS/Tesla-style inlet. It does not add CCS capability to a vehicle that lacks the required charging-control hardware, software or communication support.
High-power DC charging
Rated for DC charging applications up to 250 kW, subject to system limits.
Durable contacts
High-purity copper conductors with silver-plated contact surfaces.
Weather-resistant housing
Flame-retardant PC and ABS shell with an IP54 protection rating.

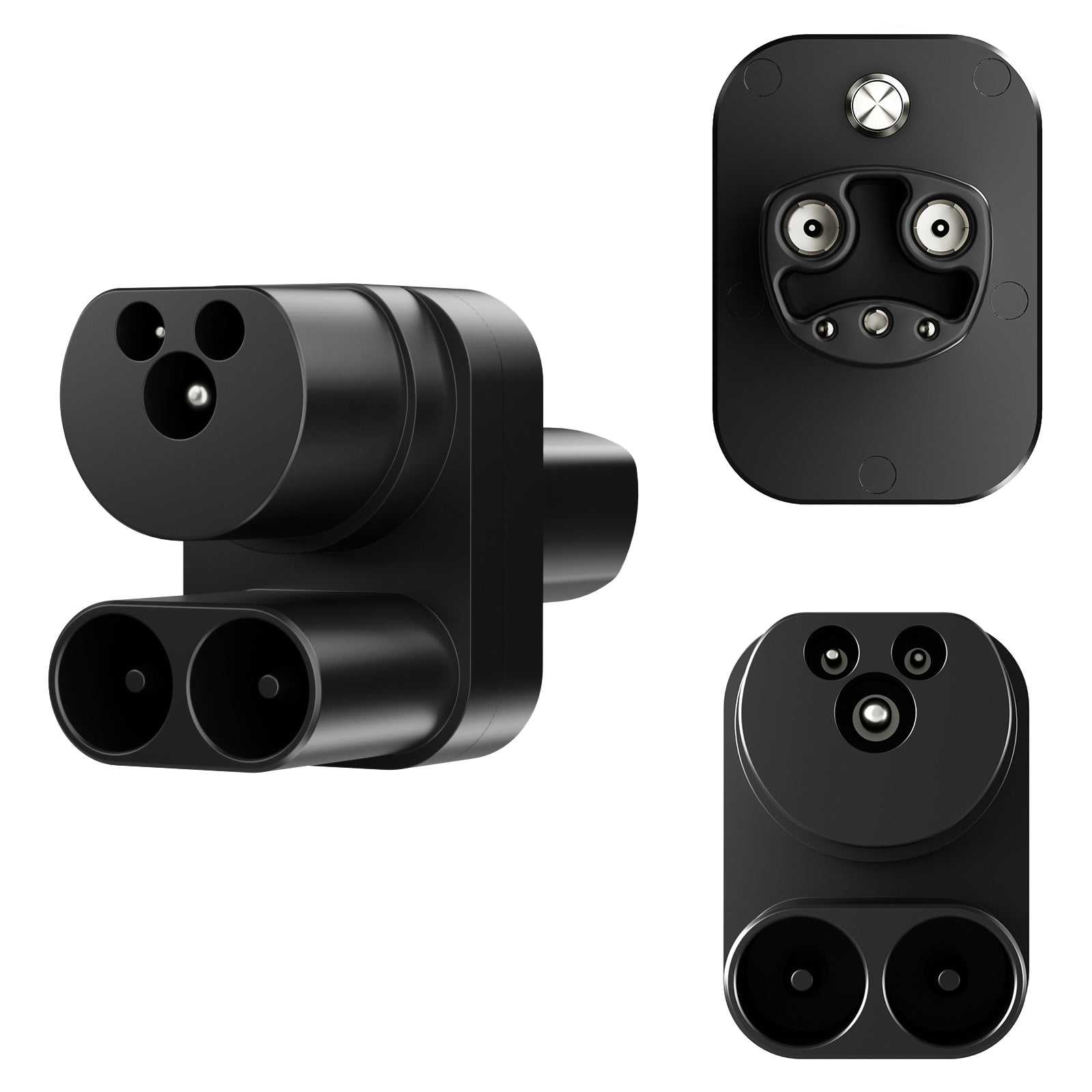

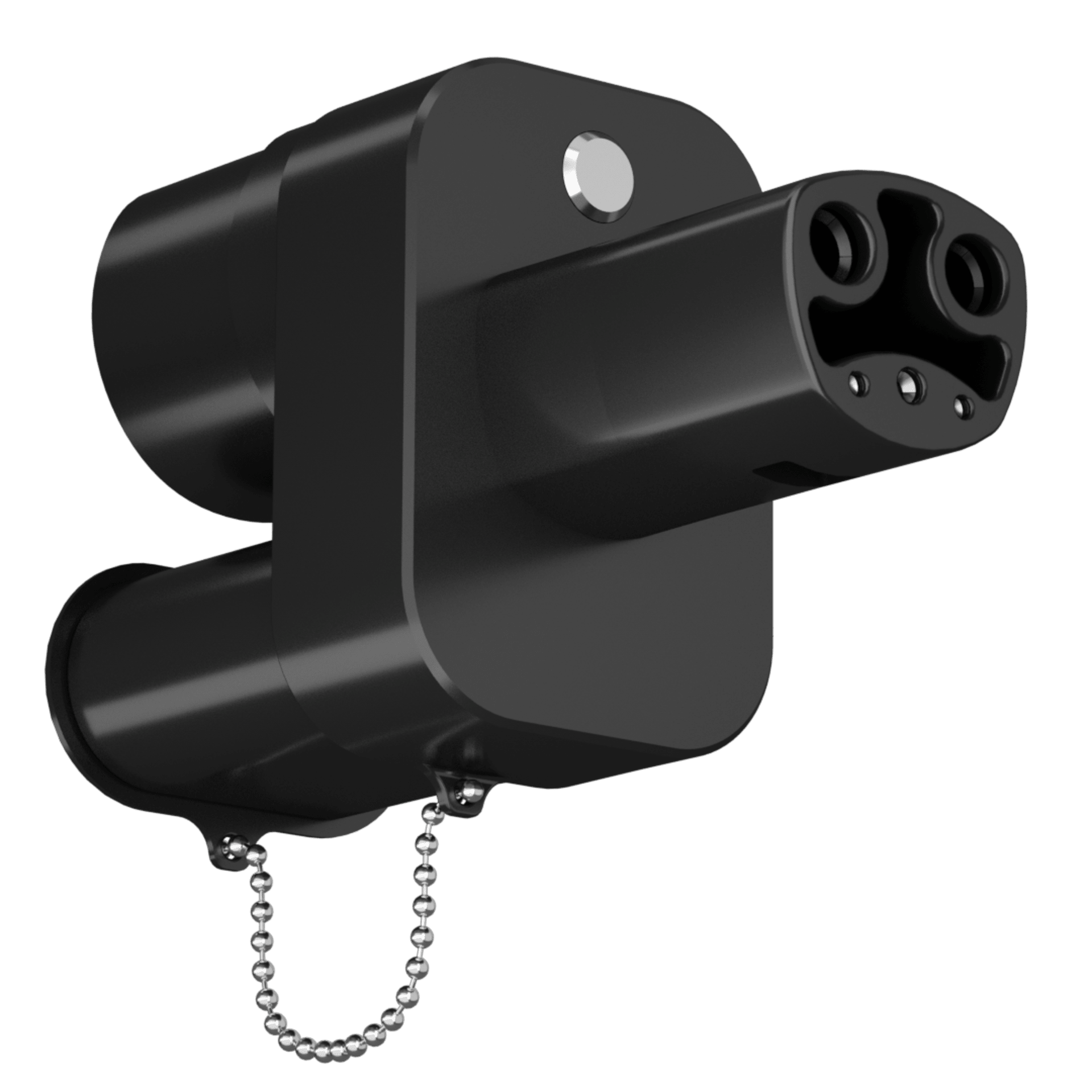

PRODUCT IMAGES
Show the adapter from every useful angle
Replace these placeholders with product photography, connector details, and an in-use charging image.
TECHNICAL SPECIFICATIONS
Rated for demanding EV charging use
Use the stated operating range of −20°C to +55°C unless separate product documentation confirms otherwise.
ConnectionCCS2 plug to NACS/Tesla-style vehicle inlet
Charging modesAC and DC, subject to compatibility
Maximum listed DC powerUp to 250 kW
DC voltage range300–1000 V DC
Current range50–250 A
Contact materialSilver-plated high-purity copper
HousingPC and ABS, flame retardant
Protection ratingIP54
Mechanical lifeMore than 10,000 cycles
CertificationsCE and FCC
COMPATIBILITY
Connector shape alone is not enough
Confirm that the vehicle supports the charging mode and CCS communication used by the selected station. Compatibility can vary by model, model year, charging-control module, battery system, software version, station operator and protocol implementation.
Some earlier or imported vehicles may require a hardware retrofit, charging-control module upgrade, software activation or manufacturer service.
Verify before purchase
- The vehicle has a compatible NACS/Tesla-style inlet.
- CCS communication is enabled in the vehicle.
- The charger uses a compatible CCS2 connector and protocol.
- Voltage and current remain within vehicle and adapter limits.
- The vehicle software and charging hardware support the station.
HOW TO USE
Connect, charge and disconnect safely
1
Park safely, place the vehicle in Park and inspect all connectors.
2
Insert the adapter fully into the vehicle’s NACS-style inlet.
3
Connect the CCS2 plug firmly and confirm both sides are locked.
4
Start the session through the station, app, card or vehicle controls.
5
Stop charging completely and wait for both locking systems to release.
6
Disconnect, allow the adapter to cool if needed, and store it dry.
SAFETY & CARE
Use only with clean, dry and undamaged connectors
Do not use the adapter if the housing, pins, seals, locking mechanism or contact surfaces are damaged, wet, contaminated, corroded or overheated. Never stack adapters, modify the product, pressure-wash it or disconnect while current is flowing.
Stop charging immediately if you notice
- Unusual heat, smell, noise, smoke or sparking
- Repeated charging errors or discoloration
- Loose connections or failed locking mechanisms
- Cracks, deformation, corrosion or foreign material
FREQUENTLY ASKED QUESTIONS
Important answers before you connect
Does it support both AC and DC charging?
It is listed as a 2-in-1 AC/DC model. Successful charging depends on vehicle hardware, software, protocol and station compatibility.
Will my vehicle always charge at 250 kW?
No. The 250 kW figure is the adapter’s maximum listed rating. The vehicle and charger negotiate the actual power.
Is it compatible with every Tesla vehicle?
No universal compatibility can be guaranteed. Model year, hardware, CCS support and software all matter.
Can it be used at every CCS2 station?
Not necessarily. Authentication, station software, voltage, protocol and network configuration can affect the session.
Is it waterproof?
No. IP54 provides limited protection from dust and splashing water. Do not submerge it or use wet contacts.
Can multiple adapters be stacked?
No. Stacking adapters can increase resistance, heat, communication faults and mechanical strain.
BEFORE ORDERING
Confirm vehicle and charger compatibility
Share the vehicle model, model year, inlet type and intended CCS2 charging station with the iCharge team.
