Smart dual-output AC charging

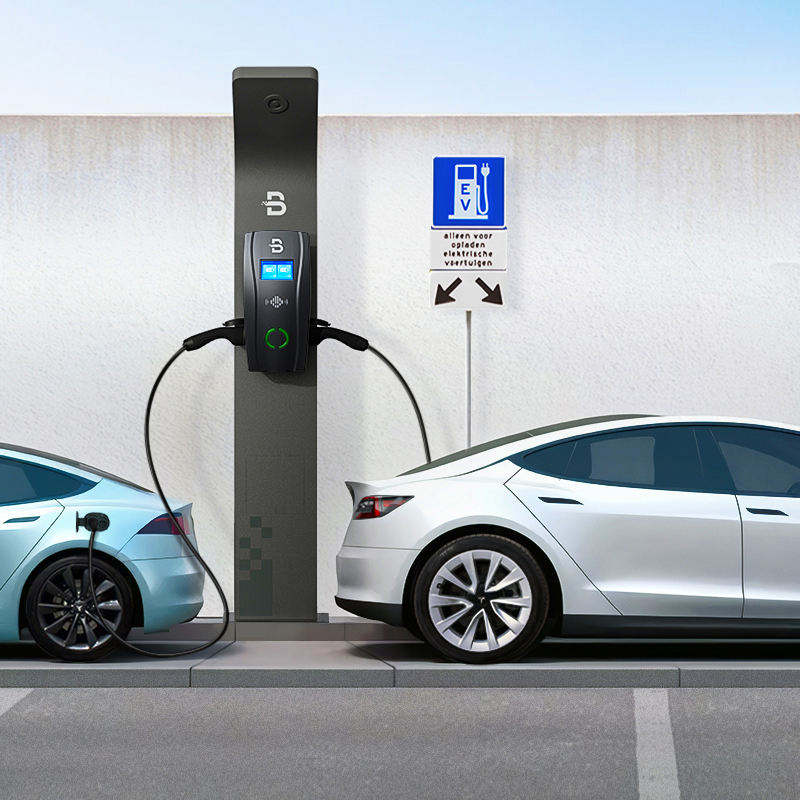

BENY Dual 7.5 kW Smart AC EV Charger
Charge two electric vehicles at the same time from one wall-mounted station. Each Type 2 tethered connection delivers up to 7.4 kW, with smart controls, RFID access, separate MID energy metering and OCPP 1.6J support.
2 × Type 2 cablesUp to 14.8 kW combinedIP65OCPP 1.6J
Request product information
Product overview
One smart charger for two vehicles
The BENY BCPCM-C2N-P is designed for homes, workplaces, fleets and shared parking locations where two compatible EVs need dependable AC charging. Actual output depends on vehicle capability, available site power, installation configuration and load-management settings.
Core features
Connected, controlled and easy to monitor
Smart application control
Remote start and stop, schedules, monitoring, charging history, RFID management and energy reports.
RFID access control
Restrict charging to authorised users in apartments, offices, fleets and shared locations.
LCD and LED status
A five-inch LCD and LED indicators display charging, connection and operating status.
OCPP 1.6J support
Connect to compatible charge-point management platforms and supported backend services.
Optional load balancing
Adjust charging demand to available property capacity and reduce overload risk.
Flexible connectivity
Wi-Fi, Ethernet and Bluetooth are standard, with optional 4G connectivity.
Designed for shared charging
Clear information and separate energy tracking
The dual-output design reduces the need for two separate wall chargers. Each output is measured independently through its own MID meter.
- Residential and apartment parking
- Workplace and employee charging
- Fleet depots and shared vehicles
- Hotels, offices and semi-public locations
- Indoor or outdoor wall mounting
Technical specifications
Charging performance
Model: BCPCM-C2N-P
Product type: Dual-output Mode 3 AC charger
Charging outputs: 2
Maximum output: Up to 7.4 kW per connection
Combined output: Up to 14.8 kW
Rated current: 2 × adjustable 6–32 A
Voltage: 230 V AC, single-phase
Frequency: 50/60 Hz
Cables: 2 × tethered, 5 metres each
Protocol: OCPP 1.6J
Display: Five-inch LCD and LED indicators
Access: RFID
Connectivity: Wi-Fi, Ethernet, Bluetooth
Optional: 4G and Dynamic Load Balancing
Energy metering: 2 × MID meters
Protection rating: IP65
Operating temperature: -30°C to +50°C
Dimensions: 350 × 550 × 152 mm
Gross weight: 22.8 kg
Installation: Wall-mounted
Integrated protection
Comprehensive electrical monitoring
OvervoltageUndervoltageOvercurrentOvertemperatureEmergency stopLightning protectionContactor adhesionTipping detectionCable temperatureEnclosure opening
Built-in protection does not replace external protective devices required by local regulations. Final circuit design must be determined by a qualified electrician.
Compatibility
Confirm the vehicle and site
This charger is intended for compatible electric and plug-in hybrid vehicles using Mode 3 AC charging. A vehicle with a lower onboard AC limit will charge at that lower rate.
- Compatible Type 2 charging inlet
- 230 V single-phase AC charging support
- Suitable onboard charger capacity
- Sufficient property electrical supply
- Compatible OCPP backend when required
Professional installation
A qualified electrician is required
The installer must verify supply capacity, cable size, breaker and residual-current protection, earthing, isolation, surge protection, network connection, mounting surface and any required load-management equipment.
Do not connect through a domestic plug, extension lead, travel adapter or portable switching device.
Frequently asked questions
Key purchase questions
Can it charge two vehicles simultaneously?
Yes, when the installation has sufficient capacity and both vehicles support the requested rate.
Is the output 7.5 kW per connection?
The confirmed technical maximum is up to 7.4 kW per connection.
Does it include charging cables?
Yes. It includes two tethered Type 2 cables, each 5 metres long.
Can it be installed outdoors?
Yes. The enclosure is IP65-rated, subject to correct professional installation.
Does it support load balancing and 4G?
Both are optional and require compatible equipment and configuration.
Can I install it myself?
No. Installation and commissioning must be completed by a qualified electrician.
BENY dual smart charger
Plan a safe two-vehicle charging installation
Contact iCharge to confirm configuration, options, electrical requirements and availability.
